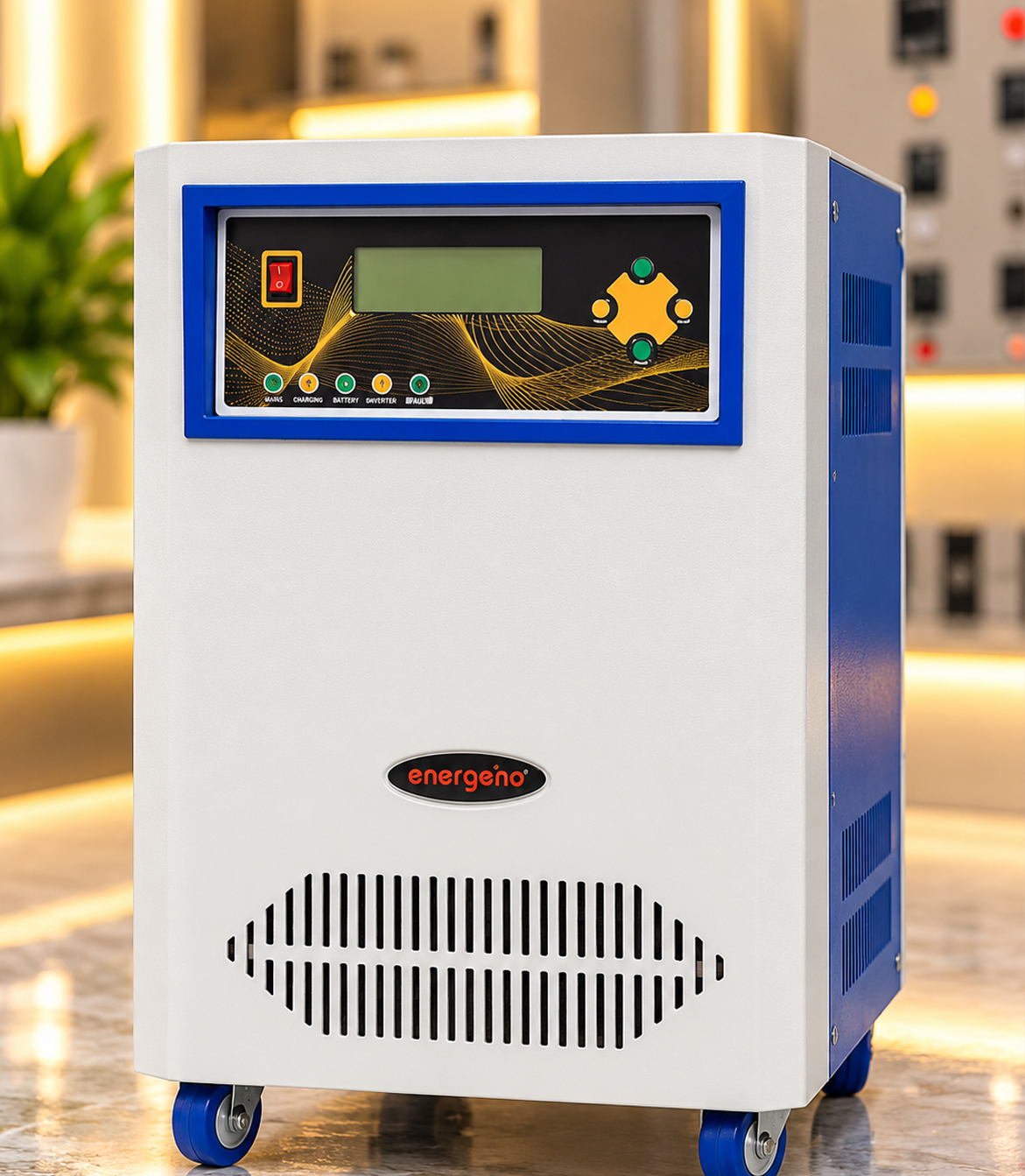

ARS 111 Single Phase IGBT Inverter is a DSP-based inverter designed for reliable single-phase power conversion. It uses IGBT switching technology and PWM sine-wave output for stable and efficient operation. The unit supports 6KVA to 10KVA ratings and provides comprehensive display, protection and alarm functions.
| Model | ARS 111 |
| Rating | 6KVA to 10KVA |
| AC Input | 230V +20% / -15%, Single Phase Input |
| Frequency | 50Hz ± 6% |
| DC Voltage | 144/180/192V DC |
| Charging Time | 12 Hours for 90% of Full Capacity |
| Charge Type | CVCC (Constant Current Constant Voltage Type) |
| INVERTER | |
| Technology | DSP Based, IGBT Switching |
| Output Voltage | 230V AC Single Phase |
| Frequency | 50Hz ± 0.1Hz |
| Waveform | PWM Sine Wave |
| Harmonic Distortion | Less Than 3% on Linear Load |
| Inverter Efficiency | Up to 90% |
| Power Factor | 0.8 |
| Overload | 110% for 5 Min, 150% for 30 Sec |
| Crest Factor | 3 : 1 |
| Audible Noise | Less Than 55 dB at 1 Meter |
| DISPLAY | |
| Digital LCD Display | Input and Output Voltages, Output Currents & Frequency, DC Voltage, Battery and Load Percentage and All Faults |
| GENERAL | |
| Operating Temperature | 0°C to 40°C |
| Humidity | Max 95%, Non-Condensing |
| PROTECTIONS | |
| Protections | Output Overload, Short Circuit, Output Under & Overvoltage, DC Under & Overvoltage, Mains Under & Overvoltage |
| INDICATIONS & ALARMS | |
| a) Mains On | LED Indication |
| b) Inverter | LED Indication |
| c) Batt Low | LED Indication & Alarm |
| d) Fault | LED Indication & Alarm |
| e) Overload | LED Indication & Alarm |
